Thermal differential control with 0.5 to 5 °C range

The temperature differential is the tolerance range of the chronothermostat for switching on and off. The default setting is 1 °C, so if the desired temperature is 24 °C, the heating is switched on when the room temperature is below 23 °C and switched off when the room temperature is above 25 °C.

STEP 1:

Detach the panel from the thermostat, a screw expansion sleeve with a pitch of 86 mm or 60 mm is installed on the wall and connected to the control line

STEP 2:

Install two No.5 (AA) reducer batteries

STEP 3:

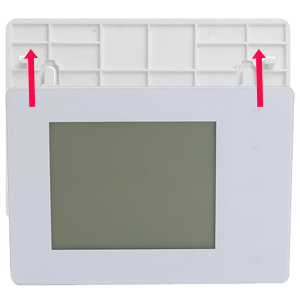

After aligning the thermostat's display board with the two hooks at the bottom of the installation board (position A), press it gently towards the wall, and the display will fully engage in position B.

Technical Parameters:

Operating Voltage: 1.5Vx2(Two 1.5V AA-type batteries)

Current Load: 3A

Temperature Control Accuracy: ±0.5°C

Temperature Range: 5-99°C（Factory default 5-35°C）

Limited Temperature Range: 5-99°C

Power Consumption: ＜150uW

Temperature Sensor: NTC
